N.A. 1.2, mounted with adjustable iris diaphragm.


Mirror type, to trace the image of a microscopic object on paper. A beam splitting prism of optical glass is positioned over the eyepiece with a large size swinging mirror which causes the image of the object to appear on a plane surface enabling its tracing.


Prism type, both the object and the paper are simultaneously visible to the observer, for drawing the image of the specimen under the microscope. It fits on the eye piece tube of all standard microscopes. Supplied in velvet lined case.


Detachable, for fitting on the fixed stage of microscope. The two graduated X and Y movements are adjusted by rack & pinion mechanism and have vernier scales reading to 0.1 mm.


‘EduTek’ Microscopes are a class by themselves. Manufactured under an ISO 9001 standardized system, each operation is carefully carried out and monitored. Due consideration is given to the parameters involved. The components and the final products are subjected to various tests commensurate with the quality of the microscope. While each microscope is inspected, the advanced microscopes are subjected to a whole series of tests such as freedom from optical aberrations,resolving power etc. These microscopes are designed to require minimum maintenance and incorporate devices to guard against over-enthusiastic use by students. For the safety of the object slide, objective lens and the mechanism, it is recommended that observing from the side, the objective lens should be brought close to the object and then looking down the microscope, focussing should be done by racking the objective away from the object.
Low cost basic equipment for use by school children to study natural science. Its light weight makes it suitable for field work as well. Focussing is by rack and pinion movement. A 84 x 76 mm stage with disc diaphragm and slide holding clips is provided. Illumination is by plano concave mirror reflector fitted under the stage. One Huygenian eye-piece x10 and one achromatic objective x10 are provided to give a sharp image of x100 magnification.


220 volt,15 watt, to replace day-light mirror reflector, fits into microscope body.


‘EduTek’ Microscopes are a class by themselves. Manufactured under an ISO 9001 standardized system, each operation is carefully carried out and monitored. Due consideration is given to the parameters involved. The components and the final
products are subjected to various tests commensurate with the quality of the microscope. While each microscope is inspected, the advanced microscopes are subjected to a whole series of tests such as freedom from optical aberrations,resolving power etc. These microscopes are designed to require minimum maintenance and incorporate devices to guard against over-enthusiastic use by students. For the safety of the object slide, objective lens and the mechanism, it is recommended that observing from the side, the objective lens should be brought close to the object and then looking down the microscope, focussing should be done by racking the objective away from the object.
Economy model for beginners. Monocular body is inclinable upto 90° for ease of working. Mechanical tube length is standard 160 mm. Focussing is through rack & pinion arrangement. A fixed stage 110 x 100 mm is provided with stage clips ,illumination is by plano concave mirror reflector. With x10 Huygenian eye-piece and x10 achromatic objective, giving x100 magnification.


‘EduTek’ Microscopes are a class by themselves. Manufactured under an ISO 9001 standardized system, each operation is carefully carried out and monitored. Due consideration is given to the parameters involved. The components and the final
products are subjected to various tests commensurate with the quality of the microscope. While each microscope is inspected, the advanced microscopes are subjected to a whole series of tests such as freedom from optical aberrations,resolving power etc. These microscopes are designed to require minimum maintenance and incorporate devices to guard against over-enthusiastic use by students. For the safety of the object slide, objective lens and the mechanism, it is recommended that observing from the side, the objective lens should be brought close to the object and then looking down the microscope, focussing should be done by racking the objective away from the object. As above, but with triple revolving nose-piece and three achromatic objectives x4, x10 and x20 giving magnification x40 to x200.


Mounted on stand, fully adjustable for height and angle. The lamp holder is fitted with a ground glass diffuser, complete with 6 volt, 20 watt lamp and flexible leads.


Achromatic, standard international threads, interchangeable. x40, x 60 and x100 objectives are spring loaded and are retractable for safety of slides and to avoid damage to objective lens.

PROJECTION MICROSCOPE
A greatly enlarged image of the specimen slide is projected
on the screen, providing a high contrast, sharp and distortion
free image. The microscope is highly suitable for group
discussions as well as for teaching purposes.
General Features

1.  Stable and robust stand
2.  Monocular fixed straight tube body. Mechanical tube length 160 mm.
3.  Separate knobs for coarse and fine focussing.
4.  Fixed square stage 110 x 110 mm with graduated detachable mechanical stage.
5. Triple revolving nose-piece with click stops andpositive centering.
6. Fixed built-in Abbe condenser N. A 0.65
7. Illumination by 6V 20 W halogen lamp with solid state variable light control knob for adjusting the intensity of light.
8. Grainless, optically true circular glass projection
   screen rotatable through 360° on microscope tube.
   Eyepiece : Huygenian x10
   Objectives : Achromatic: x5, x10, x20.
   As above, with screen of 150 mm diameter.


PROJECTION MICROSCOPE
A greatly enlarged image of the specimen slide is projected
on the screen, providing a high contrast, sharp and distortion
free image. The microscope is highly suitable for group
discussions as well as for teaching purposes.
General Features

   1.  Stable and robust stand
   2.  Monocular fixed straight tube body. Mechanical tube length 160 mm.
   3.  Separate knobs for coarse and fine focussing.
   4.  Fixed square stage 110 x 110 mm with graduated detachable mechanical stage.
   5. Triple revolving nose-piece with click stops andpositive centering.
   6. Fixed built-in Abbe condenser N. A 0.65
   7. Illumination by 6V 20 W halogen lamp with solid state variable light control knob for adjusting the intensity of light.
   8. Grainless, optically true circular glass projection
      screen rotatable through 360° on microscope tube.
      Eyepiece : Huygenian x10
      Objectives : Achromatic: x5, x10, x20.
      As above, with screen of 150 mm diameter.





50 mm diameter, plane and concave mirror reflectors in metal frame.


Stereo-microscopes are required where an image of high quality, erect, magnified and with full preception of depth is needed. These are designed to have a long working distance and three dimensional viewing to facilitate mechanical interaction with the specimen e.g. in dissection of small specimen, study of living organism, study of rocks and minerals, inspection of electronic and other small components.

1.    45° inclined binocular head for ease of observation, fitted with precision prism system.
2.  Interpupillay distance is adjustable 50-75 mm with independent compensating adjustment on the left eye tube.
3.  Focussing is by large knobs on both sides by rack and pinion arrangement.
4.  With removable white/black plate in base with stage clips
5.  Eyepieces : WF x10 (paired)
6.  Objectives : Achromatic x2 (paired) and x4 (paired) with sliding arrangement  Magnification : x20, x40
7. With dust cover In moulded styrofoam box or in wooden box

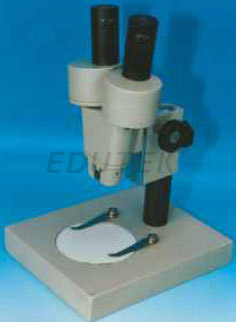

Stereo-microscopes are required where an image of high quality, erect, magnified and with full preception of depth is needed. These are designed to have a long working distance and three dimensional viewing to facilitate mechanical interaction with the specimen e.g. in dissection of small specimen, study of living organism, study of rocks and minerals, inspection of electronic and other small components

1.  Straight binocular head fitted with precision prism system.
2.  Interpupillary distance is adjustable 50-75 mm
3.  Focussing is by large knobs on both sides through rack and pinion mechanism.
4.  Interchangeable circular black/ white stage plate is positioned in the base which also has two stage clips.
5.  Eyepiece : Wide field x10 (paired)
6.  Objective : Achromatic x2 (paired)
7.  Magnification : x20
8.  Supplied with dust cover. In moulded styrofoam box or in wooden box
